Detailed Product Description
| Condition: | New | Application: | Granules |
| Plastic Processed: | PP/PVC/WPC/PE/ABS/XPS/Polystyrene | Screw Design: | Double-screw |
| Automatic Grade: | High Automation | Place Of Origin: | Shijiazhuang, China (Mainland) |
| Brand Name: | DONGYUE | Voltage: | 380V 50HZ Or Customized |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Keyword: | Twin Screw Masterbatch Extruder |
| Filler Master Batch Machine Name: | Water-ring Pelletizing Machine Line | Twin Screw Extruder Warranty: | 1 Year |
| Twin Screw Extruder Color: | Any Color As Your Require |
Representative Materials of Co-rotating Twin screw Extruder (Reference Values)
| Process | Representative materials |
| Mixing nature-changing | PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc. |
| PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc. | |
| Filling nature-changing | PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder
ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide. |
| PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder | |
| Functional machine pellets | PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets |
| PE,PP,PS, etc+ starch: de-composing machine pellets | |
| PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets | |
| PE,EVA=ABS etc+ carbon black: black machine pellets | |
| Colored machine pellets | PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary |
| Intensified glass fibers and carbon fibers | PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc. |
| Various cables | HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,
PE peroxide silicon alkyl crossing cables: radialization crossing cables |
| Special materials | EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material |
| Reaction extruding | Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc. |
| Exhausting and volatilization | Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene |
| Powder paint | Polyester, ring oxide, lactide, polyurethane, acrylate |
Specifications and Technical Data:
| Parameter
Model |
Screw Diameter/mm | Groove depth/mm | L/D | Main motor power/KW | Screw rotating speed(rpm/min) | Output(kg/h) |
| SJSH-20 | 21.7 | 3.85 | 28/60 | 4 | 600 | 5-15 |
| SJSH-26 | 25 | 4.1 | 28/60 | 5.5-10 | 600 | 10-40 |
| SJSH-36 | 35.6 | 6 | 28/60 | 15-22 | 600 | 15-80 |
| SJSH-40 | 41 | 7 | 28/60 | 30-37 | 500/600 | 50-150 |
| SJSH-50 | 50.5 | 9 | 28/60 | 37-55 | 500/600 | 80-200 |
| SJSH-60 | 60 | 10 | 28/60 | 45-75 | 500/600 | 100-300 |
| SJSH-65 | 62.4 | 11 | 28/60 | 55-90 | 400/500/600 | 150-400 |
| SJSH-75 | 71 | 12 | 28/60 | 110-250 | 400/500/600 | 250-800 |
| SJSH-95 | 92 | 16.3 | 28/60 | 200-315 | 400/500/600 | 650-1500 |
| SJSH-135 | 133 | 23.5 | 28/60 | 600 | 400/500/600 | 1500-3000 |

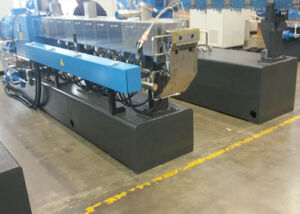

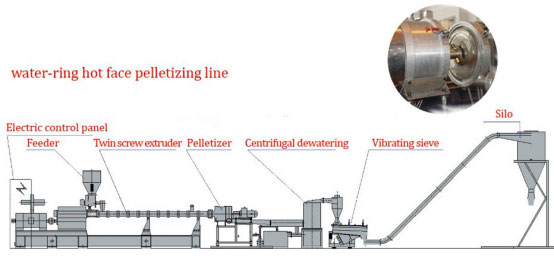

Water ring hot face pelletizing line
Electric control panel +feeder + twin screw extruder + pelletizer +centrifugal dewatering + vibrating sieve + silo
Our service
Shijiazhuang Dongyue Electromechanical Co., LTD., specializing in the production of (super) high torque twin screw, three screw underwater granulator, equipment advantages are: reducer bearing torque, material mixing, plasticizing, uniform stability, large output; With raw material supply, temperature control, mixing and extrusion, granulation and dehydration, drying collection integrated design, control process using imported PLC, touch screen control, temperature control precision within ±2°C, electrical main control components are French Schneider products, control mode can be in manual and automatic mode free conversion, can be a key to start, a key to stop, With 35 years of production experience, the program design is constructed by a doctor of system science of Chinese Academy of Sciences.
The design is reasonable, the operation is simple and practical, the function interlock and optimization are in place, and the operation is safe, stable and reliable. In addition, we can also configure the reaction kettle + single screw (or melt pump) extrusion and other water cooling granulation modes.
