Water cooling strand PET flake pelletizing line
Detailed Product Description
| Condition: | New | Application: | Granules |
| Plastic Processed: | PP/PVC/WPC/PE/ABS/XPS/Polystyrene | Screw Design: | Double-screw |
| Automatic Grade: | High Automation | Place Of Origin: | Shijiazhuang, China (Mainland) |
| Brand Name: | DONGYUE | Voltage: | 380V 50HZ Or Customized |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Keyword: | Twin Screw Masterbatch Extruder |
| Filler Master Batch Machine Name: | Water Cooling Strand Pelletizing Line | Twin Screw Extruder Warranty: | 1 Year |
| Twin Screw Extruder Color: | Any Color As Your Require |
Our Services

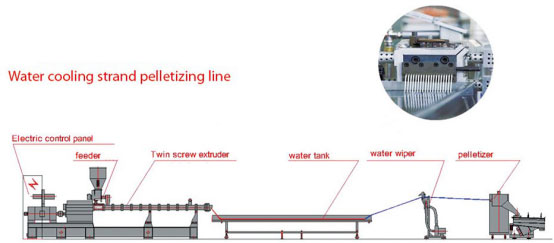

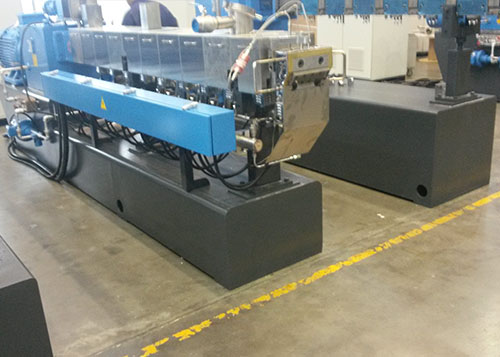

1.Water cooling strand PET flake pelletizing line

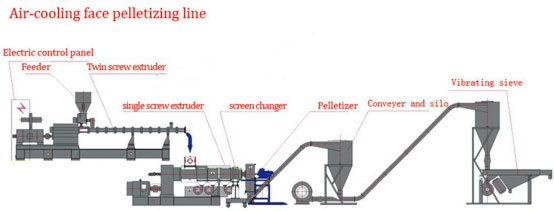

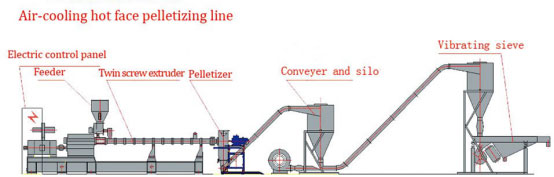

2.Air-cooling hot face pelletizing line

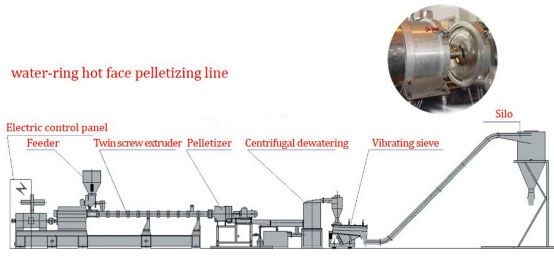

3.Water-ring hot face pelletizing line
4.Two-stage extruder pelletizing line
Representative Materials of Co-rotating Twin screw Extruder (Reference Values)
| Process | Representative materials |
| Mixing nature-changing | PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc. |
| PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc. | |
| Filling nature-changing | PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder
ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide. |
| PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder | |
| Functional machine pellets | PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets |
| PE,PP,PS, etc+ starch: de-composing machine pellets | |
| PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets | |
| PE,EVA=ABS etc+ carbon black: black machine pellets | |
| Colored machine pellets | PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary |
| Intensified glass fibers and carbon fibers | PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc. |
| Various cables | HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,
PE peroxide silicon alkyl crossing cables: radialization crossing cables |
| Special materials | EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material |
| Reaction extruding | Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc. |
| Exhausting and volatilization | Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene |
| Powder paint | Polyester, ring oxide, lactide, polyurethane, acrylate |
Specifications and Technical Data:
| Parameter/Model | Screw Diameter/mm | Groove depth/mm | L/D | Main motor power/KW | Screw rotating speed(rpm/min) | Output(kg/h) |
| SJSH-20 | 21.7 | 3.85 | 28/60 | 4 | 600 | 5-15 |
| SJSH-26 | 25 | 4.1 | 28/60 | 5.5-10 | 600 | 10-40 |
| SJSH-36 | 35.6 | 6 | 28/60 | 15-22 | 600 | 15-80 |
| SJSH-40 | 41 | 7 | 28/60 | 30-37 | 500/600 | 50-150 |
| SJSH-50 | 50.5 | 9 | 28/60 | 37-55 | 500/600 | 80-200 |
| SJSH-60 | 60 | 10 | 28/60 | 45-75 | 500/600 | 100-300 |
| SJSH-65 | 62.4 | 11 | 28/60 | 55-90 | 400/500/600 | 150-400 |
| SJSH-75 | 71 | 12 | 28/60 | 110-250 | 400/500/600 | 250-800 |
| SJSH-95 | 92 | 16.3 | 28/60 | 200-315 | 400/500/600 | 650-1500 |
| SJSH-135 | 133 | 23.5 | 28/60 | 600 | 400/500/600 | 1500-3000 |
