Detailed Product Description
Technology Advantage：
PLC Control, HMC one push operation, simple and reliable advanced materials technology for die and the knife.
Cutter manual, Pneumatic / Hydraulic adjustment.
Unique Pelletizer structure, Precise adjustment between the knife and the die.
Polymer Diverter: Polymer diverter valve directs polymer melt toward the downstream equipment or divers the flow off line.
Die Plate: The deisgin of the die palte has a major impact on the shape, quality and uniformity of the pellets. Each die plate is custom designed using the experience and laboratory tests with a wide range of materils.
Cutting blades: Cutting blades are a product of many years of experience and are customized for each application for ultimate results. Various operating have and impact on the selection of the cutter blades and blade geometry.

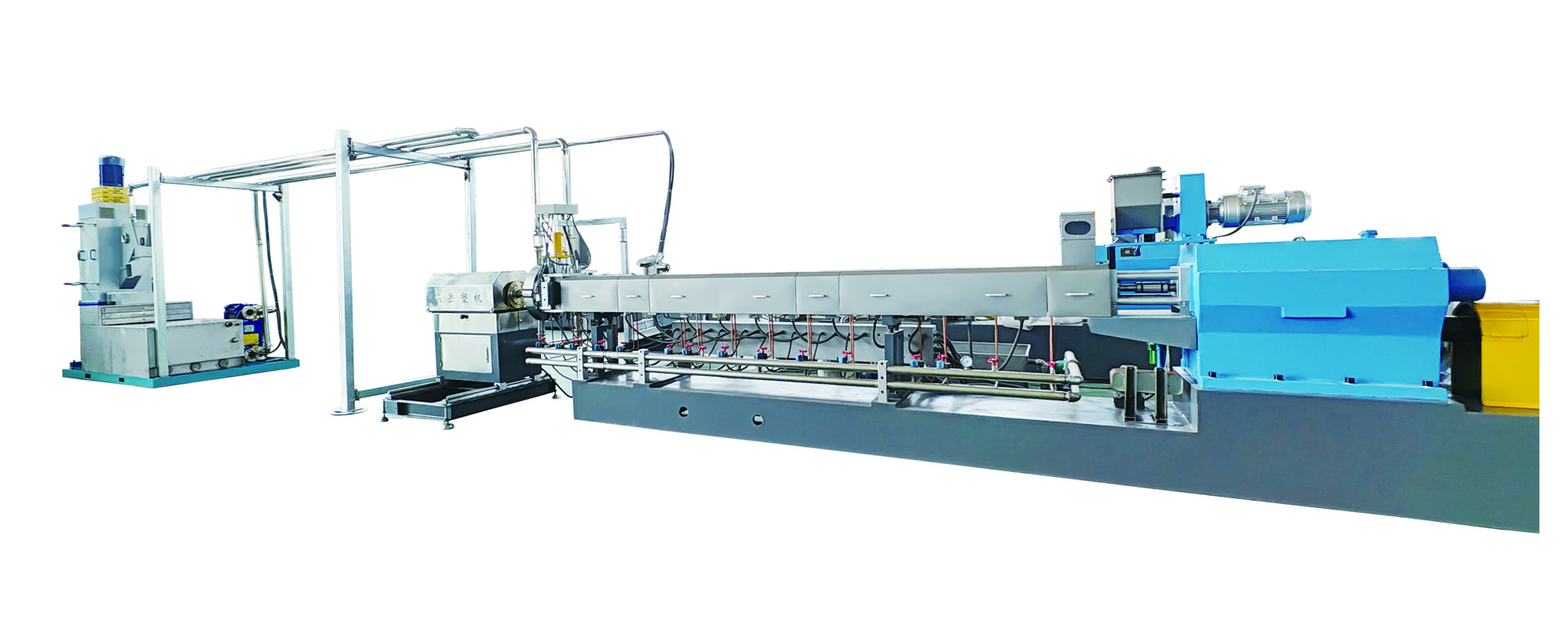

I.Datasheet of underwater pelletizing extruder
| Model | Production Capacity
(kg/h) |
Pelletizing Valve | Heating Power
(KW) |
Driving Motor
(KW) |
Speed
Range (r/min) |
Aperture Size
(mm) |
Aperture
Number |
Water Flow Rate
(m3/h) |
Water pump Power
(KW) |
| DYSXQ20 | 1-200 | DV-20 | 5.6 | 3 | 500-3000 | 0.5-3.2 | 4-10 | 8-10 | 3 |
| DYSXQ80 | 10-800 | DV-30 | 8 | 7.5 | 500-3000 | 0.5-3.2 | 18-36 | 10-15 | 4 |
| DYSXQ150 | 600-1500 | DV-30 | 12 | 11 | 500-3000 | 0.5-3.2 | 30-72 | 15-20 | 5.5 |
| DYSXQ250 | 1000-2500 | DV-40 | 14 | 15 | 500-3000 | 0.5-3.2 | 40-90 | 20-35 | 7.5 |
| DYSXQ500 | 2500-5000 | DV-50 | 16 | 22 | 500-3000 | 0.5-3.2 | 90-180 | 25-45 | 11 |
| DYSXQ1000 | 4000-10000 | DV-80 | 25 | 30 | 500-3000 | 0.5-3.2 | 180-300 | 30-80 | 15 |
II.Features of underwater pelletizing extruder
- Beautiful appearance, compact structure and space saving.
- World class DC or variable frequency control system and section fault alarm, easy to inspect and repair.
- High performance deceleration torque distribution system ensures reliable and quiet operation of the equipment.
- Underwater pelletizing has a wide range of product applications. The finished product has beautiful grain shape,
- high production output, free waste gas pollution, environmental protection and high efficiency.
III. Underwater pelletizing system Applications:
Thermoplastic elastomer: EVA, POE, SBS, SEBS, TPE, TPEE, TPO, TPU, TPV, etc
Biodegradable environmental protection materials: PBS, PBAT, PHA, PHBV, PLA, PPC, PSM, PVA, Starch based materials, etc
Thermoplastic: PE, PP, PBT, PET, PA6, PA66, PA1010, PA11, PA12, PS, PB, ACS, PC, PMMA, PFA, PVC, etc
Hot melt adhesive: EVA based, PA based, PU based, PB based, etc
Medical plastics: PVC, TPT, TPU, etc
