Detailed Product Description
| Condition: | New | Application: | Granules |
| Plastic Processed: | PP,PE,PVC,ABS,PLA,PET etc. | Screw Design | Double screw |
| Automatic Grade: | High Automation | Voltage: | 380V 50HZ Or Customized |
| Power (W): | 315KW | Weight: | 1t-10t |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Keyword: | Twin Screw Masterbatch Extruder |
| Filler Master Batch Machine Name: | Twin Screw Masterbatch Extruder PE PP Filler Master Batch Machine | Twin Screw Extruder Warranty: | 1 Year |
| Twin Screw Extruder Color: | Any Color As Your Require | Diameter(mm): | 71 |
| Masterbatch Extruder Machine L/D: | 48-52 | RPM ( R/min): | 800rpm Masterbatch |
| Torque(N.m): | 3800 | T/N: | 8.7 |
| Capacity (Kg/h): | 2500kg/h |
Twin Screw Masterbatch Extruder PE PP Filler Master Batch Machine
The machines are designed by the “toy bricks” principle, the screw configuration, barrel setup, L/D (length and Diameter Ratio) or modes of feeding and venting, screen filters changing, granulating types, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the products versatility and general applications.
Functions and Features :
1.Integrate feeding material, weighting, bag clipping, bag packing, conveying and sealing.
2.Automatic pack reduction and automatic calibration during the weighing each time.
3.Functions such as long-range controlling and trouble diagnosing, repairing , ultra difference alarms and so on.
4.Adopt gravimetric feeding method internally inside the package to ensure high metering accuracy and fast packing speed.
5.Full enclosure design, negative pressure operation inside the unit, without dust escape, with clean environment.
6.Weight meter adopts aluminum alloy enclosure, with high anti-interference performance and simple operation.
Representative Materials of Co-rotating Twin screw Extruder (Reference Values)
| Process | Representative materials |
| Mixing nature-changing | PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc. |
| PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc. | |
| Filling nature-changing
|
PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder
ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide. |
| PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder | |
| Functional machine pellets | PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets |
| PE,PP,PS, etc+ starch: de-composing machine pellets | |
| PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets | |
| PE,EVA=ABS etc+ carbon black: black machine pellets | |
| Colored machine pellets | PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary |
| Intensified glass fibers and carbon fibers | PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc. |
| Various cables | HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,
PE peroxide silicon alkyl crossing cables: radialization crossing cables |
| Special materials | EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material |
| Reaction extruding | Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc. |
| Exhausting and volatilization | Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene |
| Powder paint | Polyester, ring oxide, lactide, polyurethane, acrylate |
Specifications and Technical Data:
| Parameter/Model | Screw Diameter/mm | Groove depth/mm | L/D | Main motor power/KW | Screw rotating speed(rpm/min) | Output(kg/h) |
| SJSH-20 | 21.7 | 3.85 | 28/60 | 4 | 600 | 5-15 |
| SJSH-26 | 25 | 4.1 | 28/60 | 5.5-10 | 600 | 10-40 |
| SJSH-36 | 35.6 | 6 | 28/60 | 15-22 | 600 | 15-80 |
| SJSH-40 | 41 | 7 | 28/60 | 30-37 | 500/600 | 50-150 |
| SJSH-50 | 50.5 | 9 | 28/60 | 37-55 | 500/600 | 80-200 |
| SJSH-60 | 60 | 10 | 28/60 | 45-75 | 500/600 | 100-300 |
| SJSH-65 | 62.4 | 11 | 28/60 | 55-90 | 400/500/600 | 150-400 |
| SJSH-75 | 71 | 12 | 28/60 | 110-250 | 400/500/600 | 250-800 |
| SJSH-95 | 92 | 16.3 | 28/60 | 200-315 | 400/500/600 | 650-1500 |
| SJSH-135 | 133 | 23.5 | 28/60 | 600 | 400/500/600 | 1500-3000 |
Product description

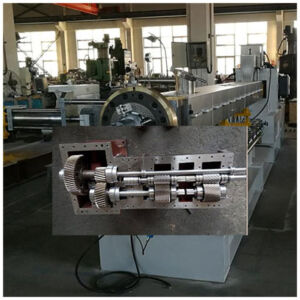

| 1. Main Parts of twin screw extruder filler masterbatch machine
Name: Twin screw extruder |
 |
 |

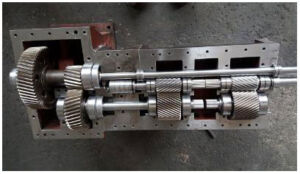

1.1. Main Parts of twin screw extruder filler masterbatch machine
Name: Gearbox |

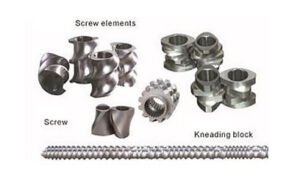

| 1.2.Main Parts of twin screw extruder filler masterbatch machine
Name: Screw elements |
 |
SJSH series twin screw extruder Application
Starch and PE PP PS are degradable after mixing,and it is mainly used as agricultural film and horticultural material in agriculture; the application in catering industry is mainly used as fast food boxes, disposable cups, plates, and knives and forks; the packaging materials are mainly the packaging of daily items, including various shopping bags, Bags, garbage bags, food bags, etc.
Modern twin screw extruder characterized by high efficiency mixing combined with low energy consumption per kg output. The under water pelletizer cuts polymer strands into pellets immediately after they have passed the die plate.
Our Services
Pre-sales service
full introduction for product characteristic and application.
Provide the economical and effective equipment configuration and solution.
Provide useful information including: the equipment working status and conditions
Provide test or trial experience.
Middle-sales service
Design and layout for the working space and pipes, public project condition.
Constantly follow up the project progress.
Work together with you in the product processing situation, screw configuration, production arrangement,etc
After sales service
Provide on-site installation, commission, training lesson.
Record the user detailed document.
Stock for spare parts, don’t worry about the repair while new machine operation instead of old machine.
Instantly provide the user application for new product processing.
regularly follow up the equipment and feedback.
one year warranty
