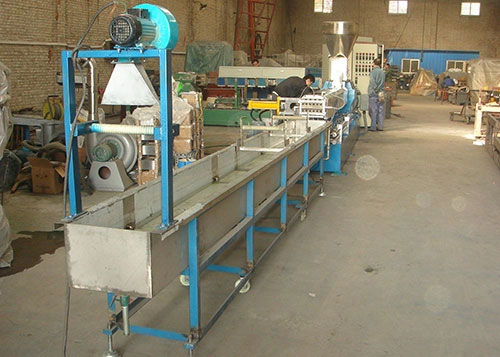

Water cooling strand pelletizing line
Water cooling strand pelletizing line
Water cooling strand pelletizing line
Water cooling strand pelletizing line
Water cooling strand pelletizing line
Click on the empty space to go back
Contact Now

Water cooling strand pelletizing line

Product Details:
Place of Origin: Shijiazhuang, China (Mainland)
Brand Name: DONGYUE
Certification: CE ISO9001

Categories :
Contact Now
  • Description

Detailed Product Description

Condition: New Application: Granules
Plastic Processed: PP/PVC/WPC/PE/ABS/XPS/Polystyrene Screw Design: Double-screw
Automatic Grade: High Automation Place Of Origin: Shijiazhuang, China (Mainland)
Brand Name: DONGYUE Voltage: 380V 50HZ Or Customized
After-sales Service Provided: Engineers Available To Service Machinery Overseas Keyword: Twin Screw Masterbatch Extruder
Filler Master Batch Machine Name: Water Cooling Strand Pelletizing Line Twin Screw Extruder Warranty: 1 Year
Twin Screw Extruder Color: Any Color As Your Require

Our Services

1.Water cooling strand pelletizing line

2.Air-cooling hot face pelletizing line

3.Water-ring hot face pelletizing line

4.Two-stage extruder pelletizing line



Representative Materials of Co-rotating Twin screw Extruder (Reference Values)

Process Representative materials
Mixing nature-changing PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.
PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.
Filling nature-changing PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder

ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.
PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder
Functional machine pellets PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets
PE,PP,PS, etc+ starch: de-composing machine pellets
PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets
PE,EVA=ABS etc+ carbon black: black machine pellets
Colored machine pellets PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary
Intensified glass fibers and carbon fibers PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.
Various cables HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,

PE peroxide silicon alkyl crossing cables: radialization crossing cables
Special materials EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material
Reaction extruding Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.
Exhausting and volatilization Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene
Powder paint Polyester, ring oxide, lactide, polyurethane, acrylate

Specifications and Technical Data:

Parameter/Model Screw Diameter/mm Groove depth/mm L/D Main motor power/KW Screw rotating speed(rpm/min) Output(kg/h)
SJSH-20 21.7 3.85 28/60 4 600 5-15
SJSH-26 25 4.1 28/60 5.5-10 600 10-40
SJSH-36 35.6 6 28/60 15-22 600 15-80
SJSH-40 41 7 28/60 30-37 500/600 50-150
SJSH-50 50.5 9 28/60 37-55 500/600 80-200
SJSH-60 60 10 28/60 45-75 500/600 100-300
SJSH-65 62.4 11 28/60 55-90 400/500/600 150-400
SJSH-75 71 12 28/60 110-250 400/500/600 250-800
SJSH-95 92 16.3 28/60 200-315 400/500/600 650-1500
SJSH-135 133 23.5 28/60 600 400/500/600 1500-3000

About Us

Shijiazhuang Dongyue Electrical Co., LTD., specializing in the production of (super) high torque twin screw, three screw underwater granulator, equipment advantages are: reducer bearing torque, material mixing, plasticizing, uniform stability, large output; With raw material supply, temperature control, mixing and extrusion, granulation and dehydration, drying collection integrated design, control process using imported PLC, touch screen control, temperature control precision within ±2°C, electrical main control components are French Schneider products, control mode can be in manual and automatic mode free conversion, can be a key to start, a key to stop,

We have 35 years of production experience, the program design is constructed by a doctor of system science of Chinese Academy of Sciences. The design is reasonable, the operation is simple and practical, the function interlock and optimization are in place, and the operation is safe, stable and reliable. In addition, we can also configure the reaction kettle + single screw (or melt pump) extrusion and other underwater granulation mode.
