PE PP Filler Master Batch Machine

Detailed Product Description

Condition:	New	Application:	Granules
Plastic Processed:	PP,PE,PVC,ABS,PLA,PET Etc.	ScrewScrew Design Design:	Double-screw
Automatic Grade:	High Automation	Voltage:	380V 50HZ Or Customized
Power (W):	315KW	Weight:	1t-10t
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Keyword:	Twin Screw Masterbatch Extruder
Filler Master Batch Machine Name:	Twin Screw Masterbatch Extruder PE PP Filler Master Batch Machine	Twin Screw Extruder Warranty:	1 Year
Twin Screw Extruder Color:	Any Color As Your Require	Diameter(mm):	71
Masterbatch Extruder Machine L/D:	48-52	RPM ( R/min):	800rpm Masterbatch
Torque(N.m):	3800	T/N:	8.7
Capacity (Kg/h):	2500kg/h

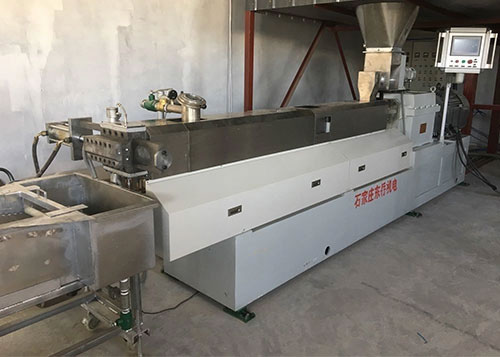

Twin Screw Masterbatch Extruder PE PP Filler Master Batch Machine

The machines are designed by using the “toy bricks” principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the versatility in each general applications.

Functions and Features :

1.Integrate feeding material, weighting, bag clipping, bag packing, conveying and sealing.
2.Automatic pack reduction and automatic calibration during the weighing each time.
3.Have functions such as long-range controlling and trouble diagnosing, repairing , ultra difference alarms and so on.
4.Adopt gravity feeding method internally inside the package to ensure high metering accuracy and fast packing speed.
5.Full enclosure design, negative pressure operation inside the unit, without dust escape, with clean environment.
6.Weight meter adopts aluminum alloy enclosure, with high anti-interference performance and simple operation.

Representative Materials of Co-rotating Twin screw Extruder (Reference Values)

Process	Representative materials
Mixing nature-changing	PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.
Mixing nature-changing	PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.
Filling nature-changing	PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.
Filling nature-changing	PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder
Functional machine pellets	PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets
	PE,PP,PS, etc+ starch: de-composing machine pellets
	PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets
	PE,EVA=ABS etc+ carbon black: black machine pellets
Colored machine pellets	PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary
Intensified glass fibers and carbon fibers	PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.
Various cables	HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings, PE peroxide silicon alkyl crossing cables: radialization crossing cables
Special materials	EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material
Reaction extruding	Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.
Exhausting and volatilization	Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene
Powder paint	Polyester, ring oxide, lactide, polyurethane, acrylate

Specifications and Technical Data:

Parameter/Model	Screw Diameter/mm	Groove depth/mm	L/D	Main motor power/KW	Screw rotating speed(rpm/min)	Output(kg/h)
SJSH-20	21.7	3.85	28/60	4	600	5-15
SJSH-26	25	4.1	28/60	5.5-10	600	10-40
SJSH-36	35.6	6	28/60	15-22	600	15-80
SJSH-40	41	7	28/60	30-37	500/600	50-150
SJSH-50	50.5	9	28/60	37-55	500/600	80-200
SJSH-60	60	10	28/60	45-75	500/600	100-300
SJSH-65	62.4	11	28/60	55-90	400/500/600	150-400
SJSH-75	71	12	28/60	110-250	400/500/600	250-800
SJSH-95	92	16.3	28/60	200-315	400/500/600	650-1500
SJSH-135	133	23.5	28/60	600	400/500/600	1500-3000

Product description

1. Main Parts of twin screw extruder filler masterbatch machine

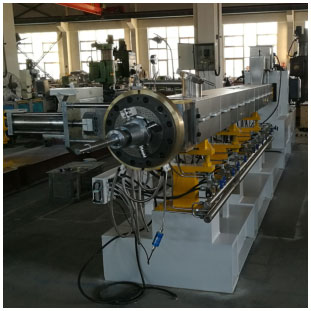

Name: Twin-screw extruder
Brand: DONGYUE: AC motor, power:75KW, Brand: SIEMENS Bade,
Speed governing: Japanese ABB inverter control speed,
Revolutions:800rpm for filler masterbatch/300rpm for pet flake
Reduction ratio: i =1.9/5:1

1.1. Main Parts of twin screw extruder filler masterbatch machine

Name: Gearbox
Brand: DONGYUE
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.

1.2.Main Parts of twin screw extruder filler masterbatch machine

Name: Gearbox

Name: Screw
Brand: DONGYUE
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo

SJSH series twin screw extruder Application:

Starch and pp pe ps are degradable after mixing,and it is mainly used as agricultural film and horticultural material in agriculture; the application in catering industry is mainly used as fast food boxes, disposable cups, plates, and knives and forks; the packaging materials are mainly the packaging of daily items, including various shopping bags, Bags, garbage bags, food bags, etc.

Advanced twin screw extruder characterized by high efficiency mixing combined with low energy consumption per kg output. The under water pelletizer cuts polymer strands into pellets immediately after they have passed the die plate.
