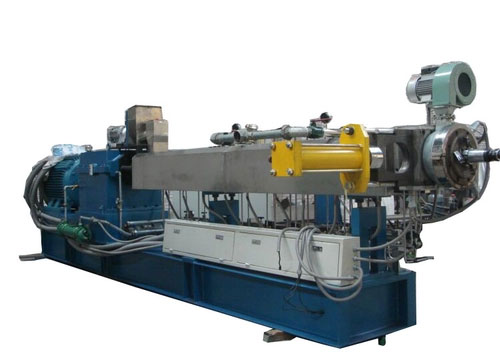

Parallel Co-Rotating Twin Screw Extruder Extruder Screw Design For Factory Price (SJSH50)
Parallel Co-Rotating Twin Screw Extruder Extruder Screw Design For Factory Price (SJSH50)
Parallel Co-Rotating Twin Screw Extruder Extruder Screw Design For Factory Price (SJSH50)
Parallel Co-Rotating Twin Screw Extruder Extruder Screw Design For Factory Price (SJSH50)
Parallel Co-Rotating Twin Screw Extruder Extruder Screw Design For Factory Price (SJSH50)
Click on the empty space to go back
Contact Now

Parallel Co-Rotating Twin Screw Extruder Extruder Screw Design For Factory Price (SJSH50)

Product Details:
Place of Origin: Shijiazhuang, China (Mainland)
Brand Name: DONGYUE
Certification: CE ISO9001
Model Number: SJSH50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box or wooden pallet for underwater pelletizing system
Delivery Time: within 50 days after contract takes effect
Payment Terms: TT
Supply Ability: 400 Set/Sets per Year

Categories :
Contact Now
  • Description

Detailed Product Description

Condition: New Application: Granules, Wood Plastic Pelletizing
Plastic Processed: PP,PE,PVC,ABS,PLA,PET Etc. Screw Design: Double-screw
Automatic Grade: Automatic Model Number: SJSH-50
Voltage: 220/380/415V Power (W): 45000W/90000W
Dimension(L*W*H): 4000mm*800mm*1800mm Weight: 4000KG
After-sales Service Provided: Engineers Available To Service Machinery Overseas Screw Material: High Speed Tool Steel W6Mo5Cr4V2
Shaft: High Strength Alloy 40CrNiMo Screw Structrue: Modular Screw Structrue
Performance: Corrosion Resistance Color: Customized L/D: 36/64
Screw Diameter: 50.5mm Groove Depth: 9mm
Rpm: Rpm 400/500/600

Plastic Pellet screw extruder

>Suitable for:
–Polymer blending & filling modification
–Engineering polymer & glass fiber reinforcement
–Universal color masterbatch, functional masterbatch
–Special material, powder coatings
–Reactive extrusion, degassing & devolatilization

Parameter/Model Screw Diameter/mm Groove depth/mm L/D Main motor power/KW Screw rotating speed(rpm/min) Output(kg/h)
SJSH-20 21.7 3.85 28/60 4 600 5-15
SJSH-26 25 4.1 28/60 5.5-10 600 10-40
SJSH-36 35.6 6 28/60 15-22 600 15-80
SJSH-40 41 7 28/60 30-37 500/600 50-150
SJSH-50 50.5 9 28/60 37-55 500/600 80-200
SJSH-60 60 10 28/60 45-75 500/600 100-300
SJSH-65 62.4 11 28/60 55-90 400/500/600 150-400
SJSH-75 71 12 28/60 110-250 400/500/600 250-800
SJSH-95 92 16.3 28/60 200-315 400/500/600 650-1500
SJSH-135 133 23.5 28/60 600 400/500/600 1500-3000

>Gearbox

Parallel & tri-axial structure and dual rack drive system. Gear and shaft made of fine quality material, SKF bearing oil-immersion lubricating system, low oil position & overpressure alarming system. High rotating speed high torque high yield.

>Screw

Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material. Screw component made of high speed & wear-resisting steel.

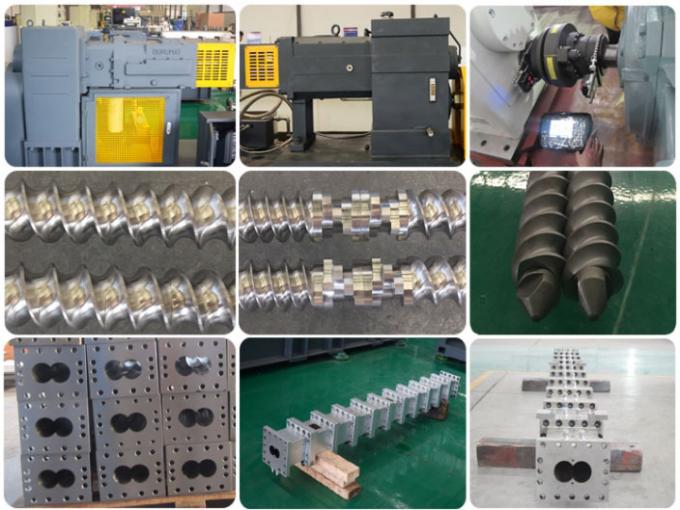

Production line



Q1: Are you a factory or trading company?
A: We are factory in Shijiazhuang ,with export license and we have done export business over 30 years professional.
Q2:Where is your factory located? How can I visit there?
A:Around 2 hours from Beijing to Shanghai by high speed train. Warmly welcome to visit us!
Q3: Is your product can be assured ?
A: Our machine passed ISO9001:2001, has CE certificate by SGS, TUV.
Q4: What’s your advantages:
A:1)Good quality guarantee
2)Professional Tech. and R&D team
3)Strict quality control as per ISO9001:2001 & TUV.
4) Passed CE certificate by SGS.
5)We will service for you in 24 hours and reply promptly
6)Fast production and delivery
7)Large international market
8)Very competitive price


If you have any questions, please don’t hesitate to contact us immediately, we will try our best to do so !
