Detailed Product Description
| Condition: | New | Application: | Granules, Wood Plastic Pelletizing |
| Plastic Processed: | PP,PE,PVC,ABS,PLA,PET Etc. | Screw Design: | Double-screw |
| Automatic Grade: | Fully Automatic | Model Number: | SJSH-65 |
| Voltage: | 380V | Power (W): | 220KW |
| Dimension (L*W*H): | 5500mm*800mm*2200mm | Weight: | 4500kg |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Customizable |
| Motor: | Motor 160KW | Production: | 500~800kg/h Or According To The Formula |
| L/D: | 32-60 | Screw Material: | 38CrMoAlA Nitrogen |
| Screw Diameter: | 62.4mm | Barrel Material: | 45# Steel With Bimetal Bushing |
| Axes Core: | 40CrNiMoA | Hardness: | HRC 58~64 |
| Item Name: | PET/PE/PP/PVC High Torque Parallel |

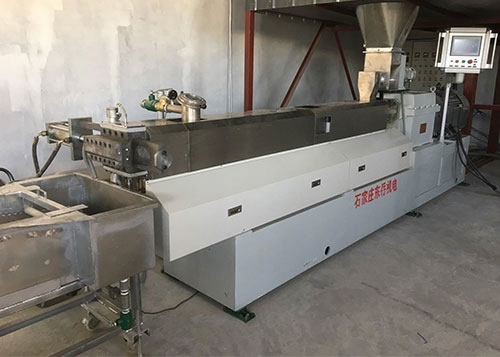

Parallel co-rotating twin screw plastic extruder PP masterbatch processing equipment
1. Single or Parallel Twin-Screw extruder, very suitable to process PP PE PET granules with high capacity
2. Pelletizing style: water-cooling, even cutting ensures good shape.
3. Auxiliary machine: pellets cooling & classifying
Its capacity can be from 50kg/h to 500kg/h. According to customer’s material formulation, we choose the screw with most reasonable structure, with the aim of reaching the best plastication status, as well as good material floating quality.
| Model | main motor | screw diameter | L/D ratio | Max. rotating speed | capacity |
| SJSH65-A | 75kw | 62.4mm | 40-52(24-56) | 400/500/600 | 150-500kg/h |
| SJSH65-B | 90kw | 62.4mm | 40-52 | 400/500/600 | 250-600kg/h |
| Voltage | 380V(110V,220V,240V,260,420V,410V,440V,460V,480V etc.), 50/60Hz, 3phase | ||||
Suitable process:
1) mixing modification: PP+SBS;PP+NBR;
PP+PE.
2) filling modification: PP+CaCO3, Talc;
PP+ferrous powder, sulphuric powder, ceramic powder
3) functional parent master batch: flame-redardant master batch: PP+anti-burning agent+ additives;
Degradable master batch: PP+starch
4) color master batch: PP+ pigment+ additives;
5) fibre glass reinforcing: PP+ long fibres, short fibres, carbn fibes, crystals etc.
6) special material: PP cigarette filtering material.
7) pp cable compounds: pp cable compounds for insulating cables and coatings
| Parameter/Model | Screw Diameter/mm | Groove depth/mm | L/D | Main motor power/KW | Screw rotating speed(rpm/min) | Output(kg/h) |
| SJSH-20 | 21.7 | 3.85 | 28/60 | 4 | 600 | 5-15 |
| SJSH-26 | 25 | 4.1 | 28/60 | 5.5-10 | 600 | 10-40 |
| SJSH-36 | 35.6 | 6 | 28/60 | 15-22 | 600 | 15-80 |
| SJSH-40 | 41 | 7 | 28/60 | 30-37 | 500/600 | 50-150 |
| SJSH-50 | 50.5 | 9 | 28/60 | 37-55 | 500/600 | 80-200 |
| SJSH-60 | 60 | 10 | 28/60 | 45-75 | 500/600 | 100-300 |
| SJSH-65 | 62.4 | 11 | 28/60 | 55-90 | 400/500/600 | 150-400 |
| SJSH-75 | 71 | 12 | 28/60 | 110-250 | 400/500/600 | 250-800 |
| SJSH-95 | 92 | 16.3 | 28/60 | 200-315 | 400/500/600 | 650-1500 |
| SJSH-135 | 133 | 23.5 | 28/60 | 600 | 400/500/600 | 1500-3000 |
